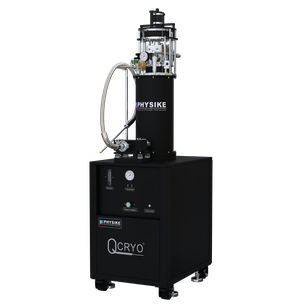

The Helium Circulation Cryogenic System Qcryo is a new-generation, multifunctional, high-efficiency cryogenic solution. It effectively transforms a standard commercial 4K cryocooler into a high-quality cold source with significantly reduced vibration and lower temperatures.
The cooling power is transmitted via ultra-insulated flexible lines to various continuous-flow cryostats. Integrated with a gas handling system, Qcryo forms a closed-loop configuration that enables cooling of remote continuous-flow cryostats to below 2.5 K—without consuming liquid helium
(optional configurations achieve <1.8 K or even 1.3 K).
Qcryo can be combined with:
- Sub-K cryostats to form a dry, ultra-low vibration sub-K system with base temperatures below 800 mK
- Continuous-flow He-3 cryostats to achieve a dry, low-vibration continuous-flow He-3 system with base temperatures below 350 mK
- Single-shot He-3 cryostats to realize a dry, low-vibration single-shot He-3 system with base temperatures below 280 mk
CryoAce 50
- < 2.4K-370K Sample Temperature
- Cold Plate 50mm
- Low Vibration < 6nm
- Cooldown Time to 4.2K < 160min
- Cooling Power [email protected]
CryoAce 100
- < 2.7K-370K Sample Temperature
- Cold Plate 100mm
- Low Vibration < 6nm
- Cooldown Time to 4.2K < 240min
- Cooling Power [email protected]
CryoAce 200
- < 3.2K-370K Sample Temperature
- Cold Plate 200mm
- Low Vibration < 12nm
- Cooldown Time to 4.2K < 600min
- Cooling Power [email protected]

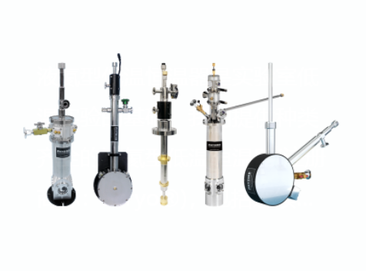

Scryo rapid cooling is achieved using liquid helium, with the sample environment maintained in vacuum or ultra-high vacuum. The system features a wide temperature range, low vibration, minimal noise, flexible design, high refrigerant efficiency, and requires no regular maintenance. It is compatible with liquid nitrogen pre-cooling and can be integrated with the Qcryo® system to form a low-vibration, closed-loop configuration that operates without consuming liquid helium.
Sample Temperature 2K-420K
